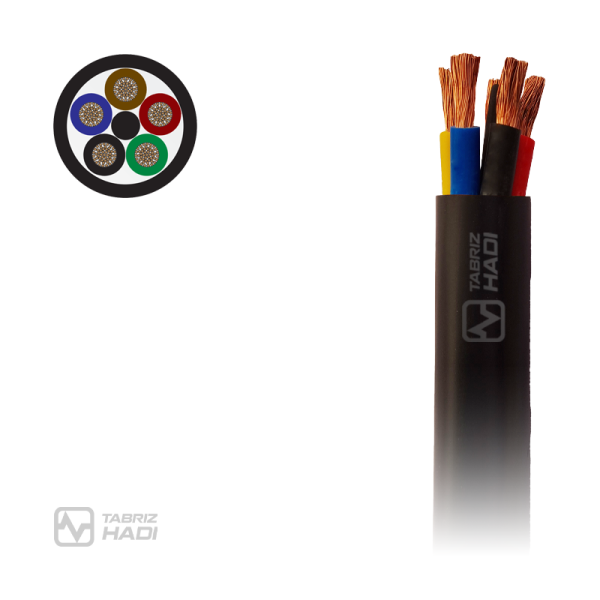

Flexible Cables 450/750v & 0.6/1Kv Copper conductor, PVC insulated and sheathed – TABRIZ HADI Wire & Cable
This cable is generally used for connecting portable electric apparatus up to 1kv as power source lead wire in factory, mine and farm.

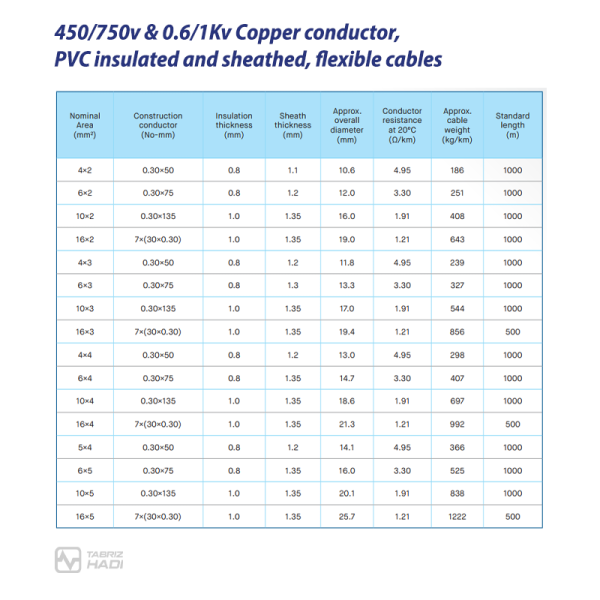

Flexible Cable specification table:
| Nominal Area (mm2) | Construction conductor (No-mm) | Insulation thickness (mm) | Sheath thickness (mm) | Approx. overall diameter (mm) | Conductor resistance at 20ºC (Ω/km) | Approx. cable weight (kg/km) | Standard length (m) |
| 4×2 | 0.30×50 | 0.8 | 1.1 | 10.6 | 4.95 | 186 | 1000 |
| 6×2 | 0.30×75 | 0.8 | 1.2 | 12.0 | 3.30 | 251 | 1000 |
| 10×2 | 0.30×135 | 1.0 | 1.35 | 16.0 | 1.91 | 408 | 1000 |
| 16×2 | 7×(30×0.30) | 1.0 | 1.35 | 19.0 | 1.21 | 643 | 1000 |
| 4×3 | 0.30×50 | 0.8 | 1.2 | 11.8 | 4.95 | 239 | 1000 |
| 6×3 | 0.30×75 | 0.8 | 1.3 | 13.3 | 3.30 | 327 | 1000 |
| 10×3 | 0.30×135 | 1.0 | 1.35 | 17.0 | 1.91 | 544 | 1000 |
| 16×3 | 7×(30×0.30) | 1.0 | 1.35 | 19.4 | 1.21 | 856 | 500 |
| 4×4 | 0.30×50 | 0.8 | 1.2 | 13.0 | 4.95 | 298 | 1000 |
| 6×4 | 0.30×75 | 0.8 | 1.35 | 14.7 | 3.30 | 407 | 1000 |
| 10×4 | 0.30×135 | 1.0 | 1.35 | 18.6 | 1.91 | 697 | 1000 |
| 16×4 | 7×(30×0.30) | 1.0 | 1.35 | 21.3 | 1.21 | 992 | 500 |
| 5×4 | 0.30×50 | 0.8 | 1.2 | 14.1 | 4.95 | 366 | 1000 |
| 6×5 | 0.30×75 | 0.8 | 1.35 | 16.0 | 3.30 | 525 | 1000 |
| 10×5 | 0.30×135 | 1.0 | 1.35 | 20.1 | 1.91 | 838 | 1000 |
| 16×5 | 7×(30×0.30) | 1.0 | 1.35 | 25.7 | 1.21 | 1222 | 500 |
