Flat Cable 450/750v & 300/500v Copper conductor, PVC insulated and sheathed – TABRIZ HADI

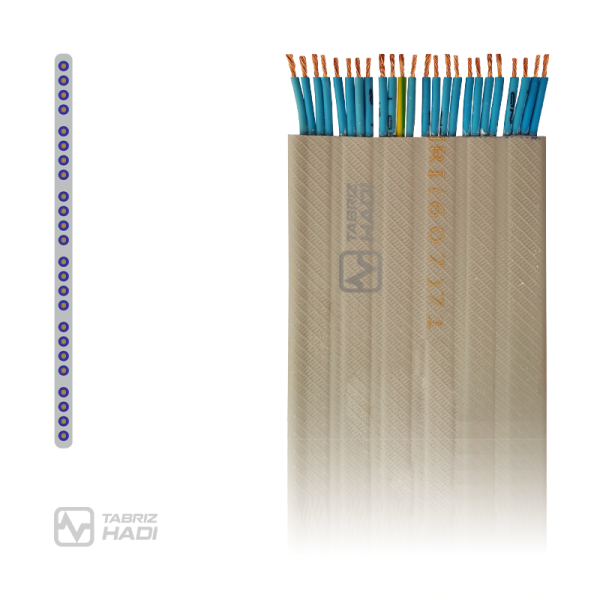

This type of cables are used to transmit electrical signals and are often used in mechanical equipment that has a continuous linear movement back and forth. A certain size of it is also commonly used in elevator systems. A certain size of it is also commonly used in elevator systems.
Flat Cable specification table:
| Number & Nominal area (mm2) | Construction conductor N0-mm | Insulationthickness (mm) | Sheath thickness(mm) | Conductor resistance at 20ºC(Ω/km) | Approx. Weight (kg/km) | Standard length (m) |
| 6×0.75 | 24×0.19 | 0.6 | 0.9-1.5 | 26.0 | 156 | 500 |
| 9×0.75 | 24×0.19 | 0.6 | 0.9-1.5 | 26.0 | 228 | 500 |
| 12×0.75 | 24×0.19 | 0.6 | 0.9-1.5 | 26.0 | 286 | 500 |
| 20×0.75 | 24×0.19 | 0.6 | 0.9-1.5 | 26.0 | 442 | 500 |
| 24×0.75 | 24×0.19 | 0.6 | 0.9-1.5 | 26.0 | 507 | 500 |
| 6×1 | 32×0.19 | 0.6 | 0.9-1.5 | 19.5 | 174 | 500 |
| 9×1 | 32×0.19 | 0.6 | 0.9-1.5 | 19.5 | 255 | 500 |
| 12×1 | 32×0.19 | 0.6 | 0.9-1.5 | 19.5 | 322 | 500 |
| 20×1 | 32×0.19 | 0.6 | 0.9-1.5 | 19.5 | 502 | 500 |
| 24×1 | 32×0.19 | 0.6 | 0.9-1.5 | 19.5 | 600 | 500 |
| 4×1. 5 | 30×0.24 | 0.7 | 1.0-1.5 | 13.3 | 208 | 500 |
| 5×1. 5 | 30×0.24 | 0.7 | 1.0-1.5 | 13.3 | 246 | 500 |
| 6×1. 5 | 30×0.24 | 0.7 | 1.0-1.5 | 13.3 | 284 | 500 |
| 9×1. 5 | 30×0.24 | 0.7 | 1.0-1.5 | 13.3 | 398 | 500 |
| 12×1. 5 | 30×0.24 | 0.7 | 1.0-1.5 | 13.3 | 512 | 500 |
| 4×2. 5 | 50×0.24 | 0.8 | 1.0-1.8 | 7.98 | 312 | 500 |
| 5×2. 5 | 50×0.24 | 0.8 | 1.0-1.8 | 7.98 | 369 | 500 |
| 6×2. 5 | 50×0.24 | 0.8 | 1.0-1.8 | 7.98 | 426 | 500 |
| 9×2. 5 | 50×0.24 | 0.8 | 1.0-1.8 | 7.98 | 597 | 500 |
| 12×2. 5 | 50×0.24 | 0.8 | 1.0-1.8 | 7.98 | 768 | 500 |
