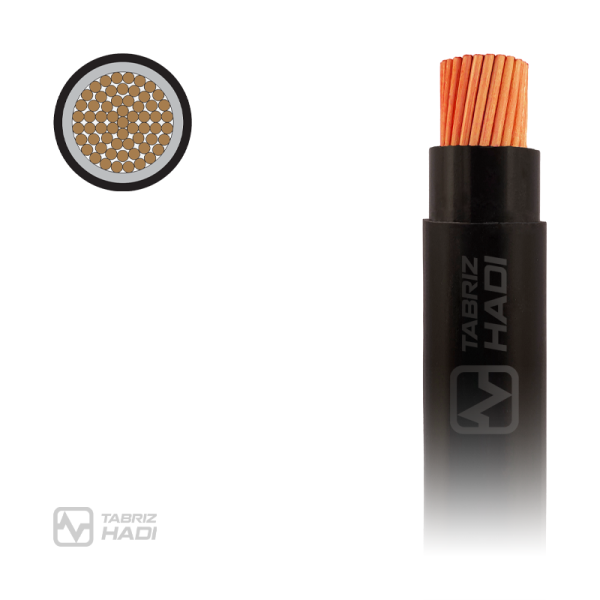

Control Cables 0.6/1Kv Copper conductor, PVC insulated and sheathed – TABRIZ HADI Wire & Cable
This cable is designed for using in remote control system up to 1000v in power plant and substation
Control Cable specification table:
| Number & Nominal area (mm2) | Construction conductor No-mm | Insulation thickness (mm) | Filler thickness (mm) | Sheath thickness (mm) | Approx. overall diameter (mm) | Conductor resistance at 20ºC(Ω/km) | Approx. weight (kg/km) | Standard length (m) |
| 5×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 13.4 | 12.1 | 286 | 1000 |
| 7×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 14.3 | 12.1 | 345 | 1000 |
| 10×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 17.5 | 12.1 | 498 | 1000 |
| 12×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 18.0 | 12.1 | 539 | 1000 |
| 14×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 18.8 | 12.1 | 593 | 1000 |
| 16×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 19.8 | 12.1 | 652 | 1000 |
| 19×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 20.7 | 12.1 | 735 | 500 |
| 24×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 23.9 | 12.1 | 954 | 500 |
| 30×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 25.2 | 12.1 | 1083 | 500 |
| 37×1.5 | 7×0.53 | 0.8 | 1.0 | 1.35 | 27.1 | 12.1 | 1271 | 500 |
| 5×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 14.5 | 7.41 | 359 | 1000 |
| 7×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 15.6 | 7.41 | 442 | 1000 |
| 10×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 19.2 | 7.41 | 644 | 1000 |
| 12×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 19.7 | 7.41 | 703 | 1000 |
| 14×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 20.7 | 7.41 | 779 | 1000 |
| 16×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 21.7 | 7.41 | 859 | 1000 |
| 19×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 22.8 | 7.41 | 975 | 500 |
| 24×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 26.4 | 7.41 | 1272 | 500 |
| 30×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 27.9 | 7.41 | 1459 | 500 |
| 37×2.5 | 7×0.67 | 0.8 | 1.0 | 1.35 | 30.2 | 7.41 | 1736 | 500 |
| 5×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 17.0 | 4.61 | 510 | 1000 |
| 7×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 18.4 | 4.61 | 637 | 1000 |
| 10×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 22.9 | 4.61 | 943 | 1000 |
| 12×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 23.7 | 4.61 | 1037 | 1000 |
| 14×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 24.8 | 4.61 | 1151 | 1000 |
| 16×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 26.1 | 4.61 | 1277 | 500 |
| 19×4 | 7×0.85 | 1.0 | 1.0 | 1.35 | 27.5 | 4.61 | 1463 | 500 |
| 24×4 | 7×0.85 | 1.0 | 1.2 | 1.35 | 32.4 | 4.61 | 1962 | 500 |
| 30×4 | 7×0.85 | 1.0 | 1.2 | 1.35 | 34.3 | 4.61 | 2275 | 500 |
| 37×4 | 7×0.85 | 1.0 | 1.2 | 1.35 | 37.0 | 4.61 | 2709 | 500 |
