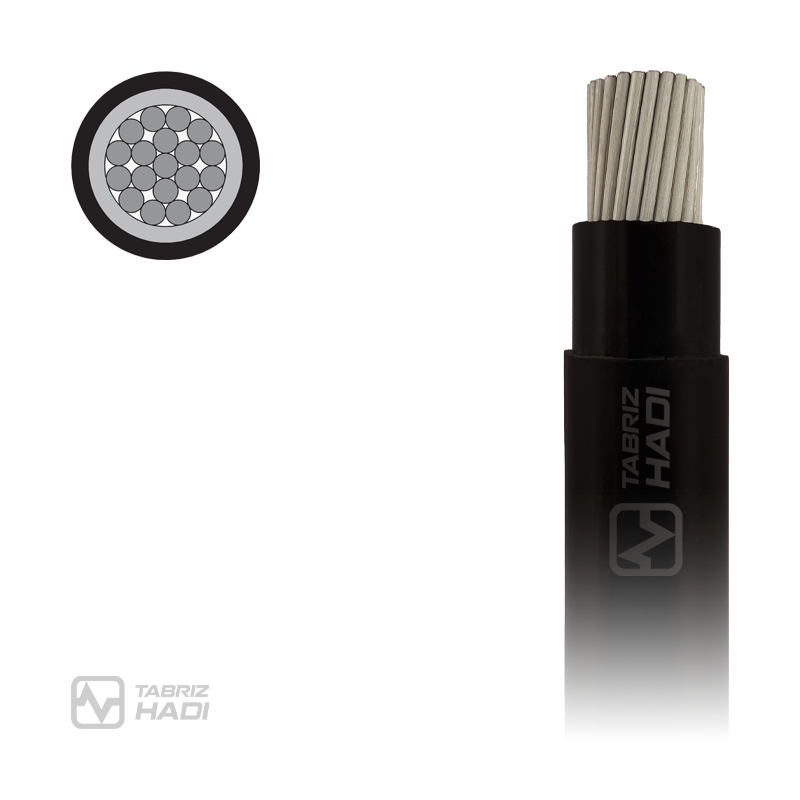

Power Cable 0.6/1KV Aluminum conductor PVC insulated and sheathed (Single core)

It is used for lighting and power in residential, commercial and industrial distribution line.

Standard: IEC 60502-1 & ISIRI 3569-1
H1VV-AU H1VV-AR

Download the catalog of power cables

Power Cable 0.6/1KV Aluminum conductor PVC insulated and sheathed (Single core)

It is used for lighting and power in residential, commercial and industrial distribution line.

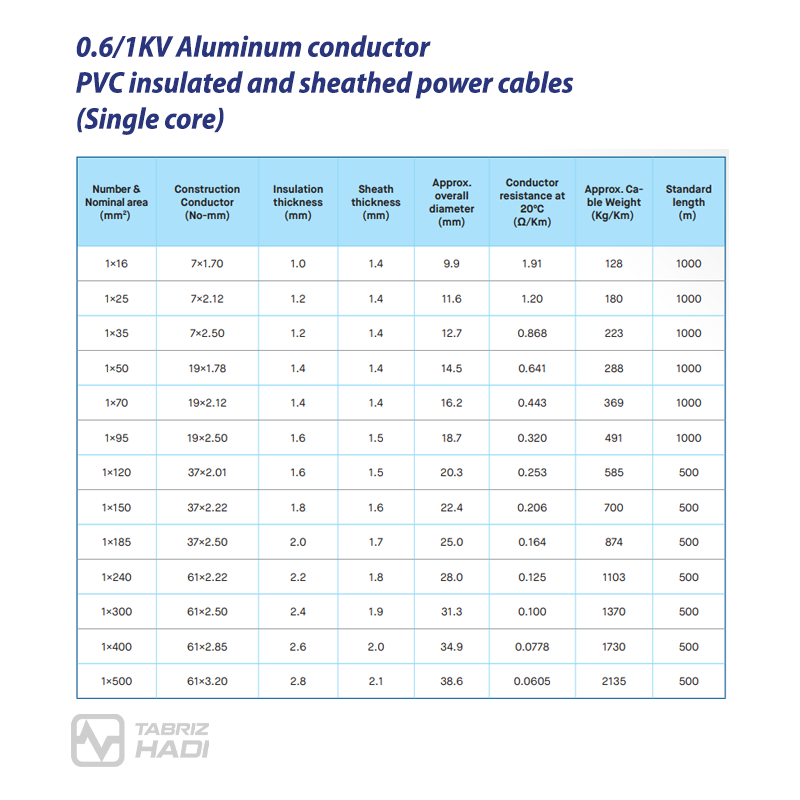

Power Cable specification table:

Number &Nominal area (mm2) Construction Conductor (No-mm) Insulation thickness (mm) Sheath thickness (mm) Approx. overall diameter (mm) Conductor resistance at 20ºC(Ω/Km) Approx. Cable Weight (Kg/Km) Standard length (m)
1×16 7×1.70 1.0 1.4 9.9 1.91 128 1000
1×25 7×2.12 1.2 1.4 11.6 1.20 180 1000
1×35 7×2.50 1.2 1.4 12.7 0.868 223 1000
1×50 19×1.78 1.4 1.4 14.5 0.641 288 1000
1×70 19×2.12 1.4 1.4 16.2 0.443 369 1000
1×95 19×2.50 1.6 1.5 18.7 0.320 491 1000
1×120 37×2.01 1.6 1.5 20.3 0.253 585 500
1×150 37×2.22 1.8 1.6 22.4 0.206 700 500
1×185 37×2.50 2.0 1.7 25.0 0.164 874 500
1×240 61×2.22 2.2 1.8 28.0 0.125 1103 500
1×300 61×2.50 2.4 1.9 31.3 0.100 1370 500
1×400 61×2.85 2.6 2.0 34.9 0.0778 1730 500
1×500 61×3.20 2.8 2.1 38.6 0.0605 2135 500



Additional information

Size (mm^2)

16*1, 25*1, 35*1, 50*1, 70*1, 95*1, 120*1, 150*1, 185*1, 240*1, 300*1, 400*1, 500*1

sheath color

Black

Voltage

0.6/1KV

Test Voltage

3.5KV/5min

conductor type

Aluminium
