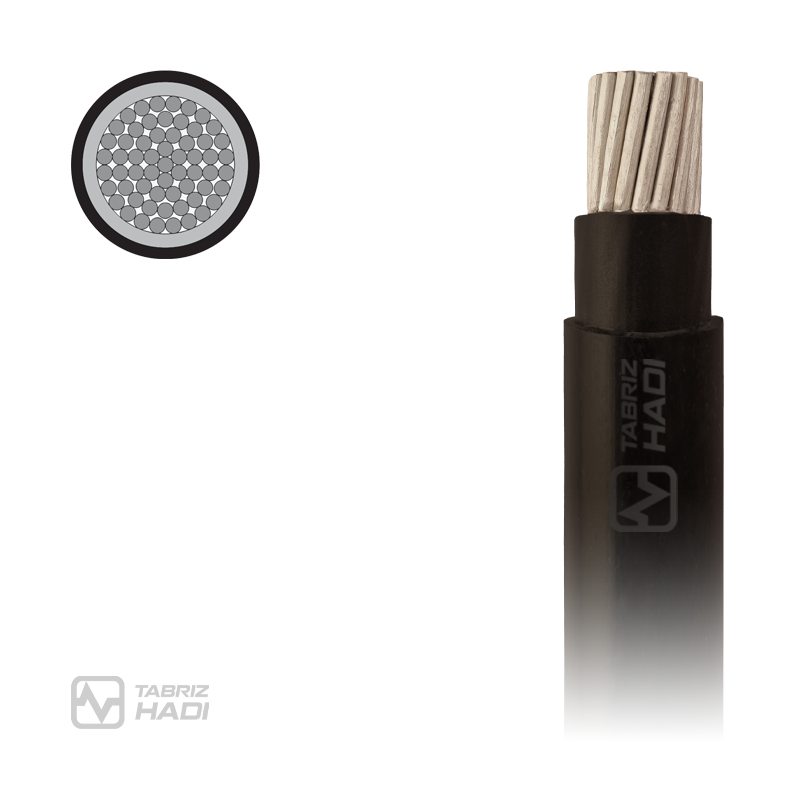

Power Cable 0.6/1KV Aluminum conductor, XLPE insulated and PVC sheathed (Single core) – TABRIZ HADI Wire & Cable
It is used for lighting and power in residential, commercial and industrial distribution line.

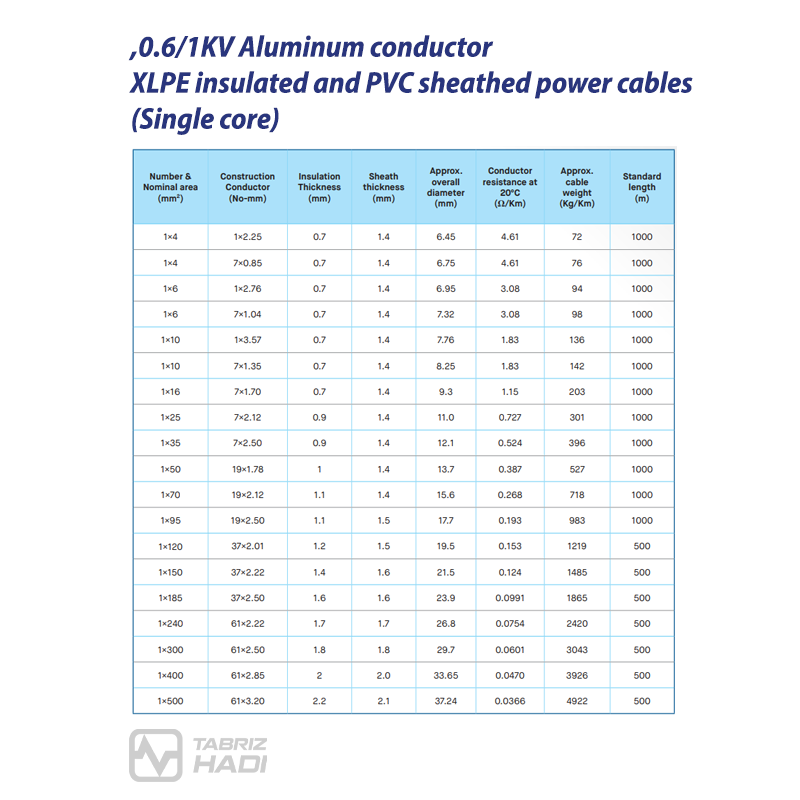

Power Cable specification table:
| Number & Nominal area (mm2) | Construction Conductor (No-mm) | Insulation Thickness (mm) | Sheath thickness (mm) | Approx. overall diameter (mm) | Conductor resistance at 20ºC(Ω/Km) | Approx. cable weight (Kg/Km) | Standard length (m) |
| 1×4 | 1×2.25 | 0.7 | 1.4 | 6.45 | 4.61 | 72 | 1000 |
| 1×4 | 7×0.85 | 0.7 | 1.4 | 6.75 | 4.61 | 76 | 1000 |
| 1×6 | 1×2.76 | 0.7 | 1.4 | 6.95 | 3.08 | 94 | 1000 |
| 1×6 | 7×1.04 | 0.7 | 1.4 | 7.32 | 3.08 | 98 | 1000 |
| 1×10 | 1×3.57 | 0.7 | 1.4 | 7.76 | 1.83 | 136 | 1000 |
| 1×10 | 7×1.35 | 0.7 | 1.4 | 8.25 | 1.83 | 142 | 1000 |
| 1×16 | 7×1.70 | 0.7 | 1.4 | 9.3 | 1.15 | 203 | 1000 |
| 1×25 | 7×2.12 | 0.9 | 1.4 | 11.0 | 0.727 | 301 | 1000 |
| 1×35 | 7×2.50 | 0.9 | 1.4 | 12.1 | 0.524 | 396 | 1000 |
| 1×50 | 19×1.78 | 1 | 1.4 | 13.7 | 0.387 | 527 | 1000 |
| 1×70 | 19×2.12 | 1.1 | 1.4 | 15.6 | 0.268 | 718 | 1000 |
| 1×95 | 19×2.50 | 1.1 | 1.5 | 17.7 | 0.193 | 983 | 1000 |
| 1×120 | 37×2.01 | 1.2 | 1.5 | 19.5 | 0.153 | 1219 | 500 |
| 1×150 | 37×2.22 | 1.4 | 1.6 | 21.5 | 0.124 | 1485 | 500 |
| 1×185 | 37×2.50 | 1.6 | 1.6 | 23.9 | 0.0991 | 1865 | 500 |
| 1×240 | 61×2.22 | 1.7 | 1.7 | 26.8 | 0.0754 | 2420 | 500 |
| 1×300 | 61×2.50 | 1.8 | 1.8 | 29.7 | 0.0601 | 3043 | 500 |
| 1×400 | 61×2.85 | 2 | 2.0 | 33.65 | 0.0470 | 3926 | 500 |
| 1×500 | 61×3.20 | 2.2 | 2.1 | 37.24 | 0.0366 | 4922 | 500 |
